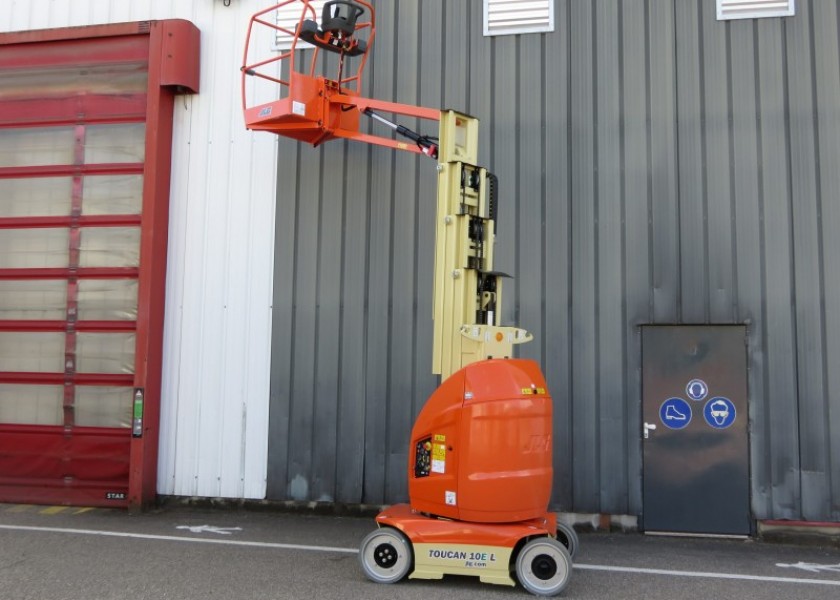

26' Vertical Mast Lift for hire in Smeaton Grange, NSW 2567

Description

26' Vertical Mast Lift for dry or wet hire.

- Working height 10.10 m
- Working outreach (standard platform) 3.38 m
- Up and over height 6.51 m
- Swing (not continuous) 345
- Platform capacity 1 200kg
- Jib - overall length 1.60 m
- Jib - range of articulation 126 (+65/ -61)
A. Platform size standard platform (L x W) 0.70 x 0.90 m
B. Overall width 0.99 m
C. Tailswing 12 cm
D. Stowed height 1.99 m
E. Overall length (standard platform) 2.82 m
F. Wheelbase 1.20 m
G. Ground clearance 10 cm
- Machine weight - standard platform 2 2,600 kg
- Maximum ground bearing pressure 19.7 kg/cm2
- Drive speed - lowered 5.5 km/h
- Turning radius (outside) 1.99 m
- Turning radius (inside) 0.55 m
- Gradeability 25%
- 0.90 m x 0.70 m (L x W) steel platform
- Slide bar rear entry
- Full proportional drive and slew joystick control with integral thumb steer switch
- Mini joysticks provide proportional mast and jib lift/lower functions
- 1.60 m articulating jib
- Load sensing system
- AC power cable to platform
- Large tool tray
- Two wheel direct electric drive
- Brushless AC drive motors
- Auto power save when idle
- Low charge function cut-out
- On-board diagnostics with integral display
- Automatic rear wheel brakes
- Sculptured polyester hoods
- Heavy duty steel roller mast with 345rotation
- Chain slack detection system
- 2,5 degree tilt alarm and indicator light
- Passive pothole protection system
- 0.99 m wide frame
- Lifting /tie down rings
- Ground control selector switch with key lock
- Battery discharge indicator
- Hour meter
- Horn
- Drive orientation system
- Lanyard anchor points
- Zenon strobe light
- Manual descent system
- Tyres (non-marking solid) 406 x 125 mm
- Electrical system 24V DC
- Batteries (AGM) 24 V - 260 A.h
- Charger 24V - 27A
- Drive motors Dual AC motors
- Electrical (pump) motor 3kW 24V DC
- Hydraulic system 7.5 L

Please call for rates and availability.

Call now to organise a booking 0439 25.....
