CMC S19N 18.8m Spider Lift for hire in Geelong, VIC 3220

Description

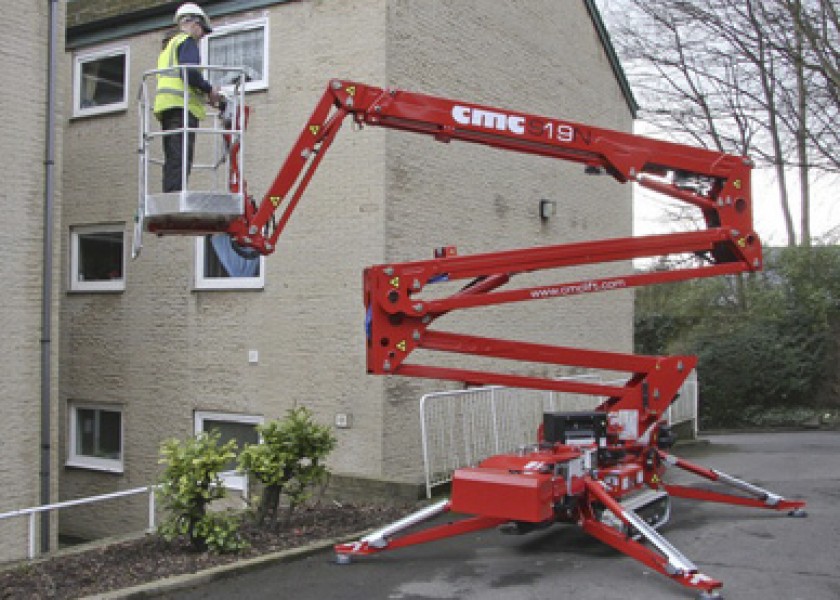

CMC S19N 18.8m Spider Lift for dry hire.

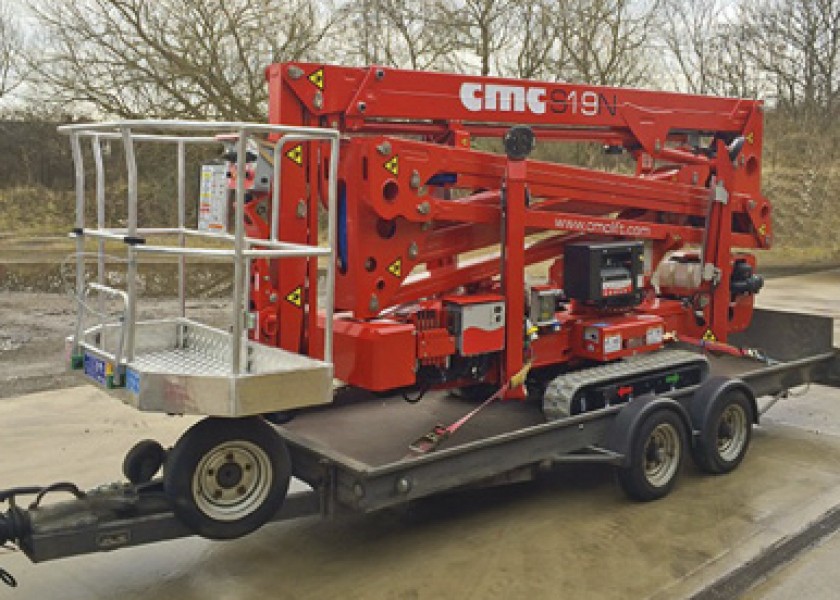

The CMC S19N version 'N' is the most compact spider lift access platform available in this size range. It has the ability to get through a single doorway and has the shortest stabilising width area at less than 3 metres.

Dimensions:
- Basket height: 1.10m
- Basket width: 0.70m
- Basket length: 1.40m
- Total length: 5.12m
- Total length without basket: 4.48m
- Height in driving position: 1.97m
- Total width (without basket): 0.78m
- Free height from the ground: 0.23m
- Tracks (LxW): 1.44 x 0.18m
- Maximum longitudinal stabilisation: 3.58m
- Maximum cross stabilisation: 2.84m
- Stabilisers plate: 0.18m

Performance:
- Max working height: 18.8m
- Max working outreach (with

Call now to organise a booking 07 3209.....

Attachment

Title	CMC S19N 18.8m Spider Lift
Sub-Category	Forestry Attachments
Access Category	Elevated Work Platform
Forestry Machine Type	Hi-Reach Equipment
GPS	No
Hire Type	Dry/Wet
Ref #	DZ37450
