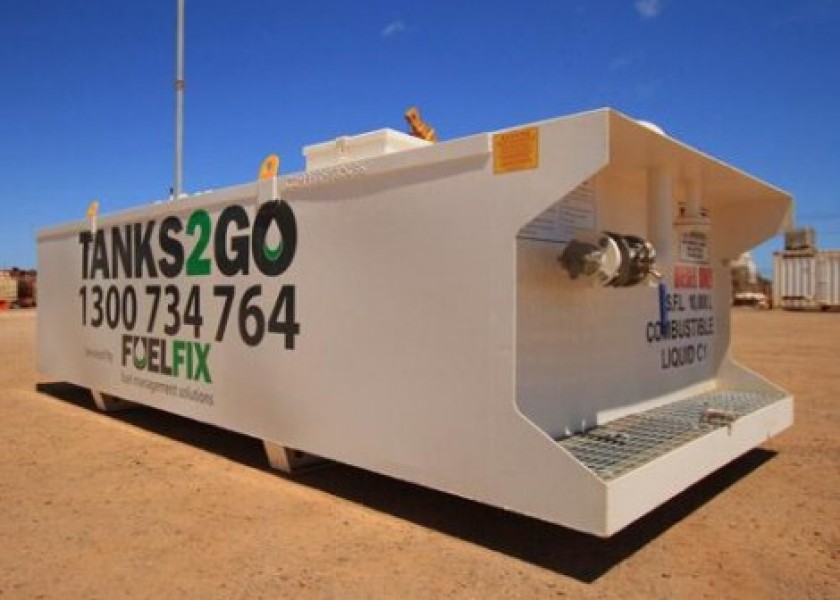

T10 SELF BUNDED WRAP TANK for hire in Wedgefield, WA 6721

Description

The T10 self bunded tank is extremely popular as a light vehicle refuelling unit and sometimes where lower quantities of fuel are used but a larger fuel delivery quantity is demanded by suppliers, especially to remote locations. The T10 self bunded diesel tank can also be utilised at the same time to supply smaller engines and generators etc. removing the need for additional fuel storage tanks.
This tank has a fairly large capacity and can satisfy both mid and lower fuel usage. The T10 bunded diesel tank can be easily transported when empty with lifting lugs and is tilt tray skiddable. The T10 is internally baffled to reduce any internal wave action. The front cowling/catchment area allows good environmental protection.
When used in conjunction with Spill Grates located under a stationary vehicle when refuelling, no accidental spillage goes to ground and also keeps the operator on a safe non slip surface especially in wet conditions. This protects the environment as well as reducing costly and time consuming site clean-up decommissioning in the future.
Optional extras can be fitted as required and Fuelfix & Tanks2Go are happy to discuss your individual requirements.
Our range can incorporate; a delivery pump with type, size and meter type to be specified to your requirements. An Electrical sub board pre-wired for quick and simple onsite installation with a 10m power lead with 32amp 5 pin plug. For more remote locations, a diesel powered delivery pump is also an option we can provide. For faster unloading of bulk fuel, an unloading pump can be added.
Several fuel management systems are available for the effective tracking of fuel usage including card or i-tote incorporating Smartfill or Transponder technology protection. Tank gauging removing the need to climb up and dip the tank with an in-tank probe indicator.
The use of spill grates has already been mentioned; they are modular so any number or configuration can be used. They are easy to transport, sit on any flat surface and bolt together with as many as required providing a large and stable hard standing containment area when refuelling vehicles.

Self bunded tank constructed to AS1692 & 1940
Safe fill level – 10,100lt
9kg Dry chemical 80BE fire extinguisher
Vent pipe & calibrated dipstick
Fill line size – 80mm
Suction size – 50mm
Return ports – 25mm
Audible overfill alarm
Mechanical overfill protection
Tilt tray skiddable
Internally baffled
Lifting lugs for empty lift only
Front cowling/catchment area
Cowling suction pipe
Tank approximate dry weight – 3,100kg
Tank dimensions all in mm: 2,220 W x 4,920 L x 1,600 H
