ASV VT-70 Posi-Track Skid Steer Loader for hire in WELSHPOOL, WA 6106

Description

Vertical Lift Loader Linkage.

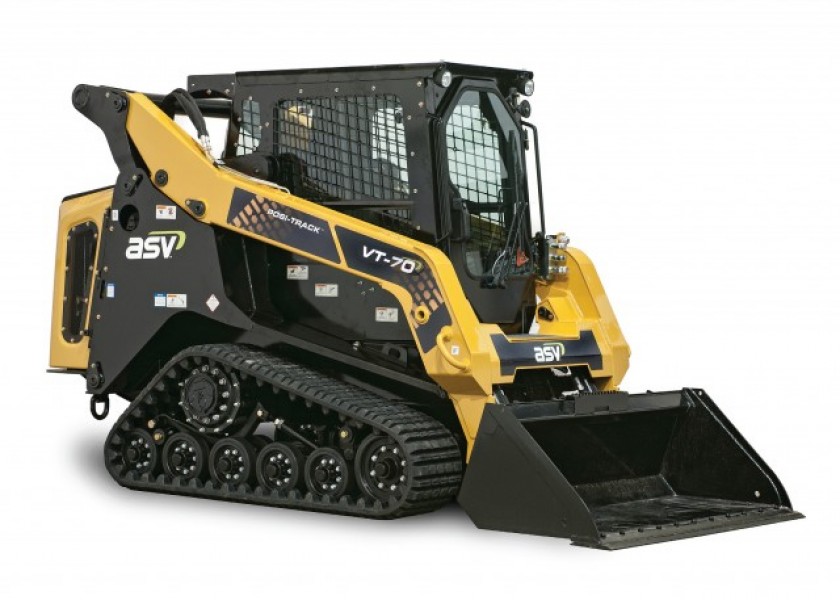

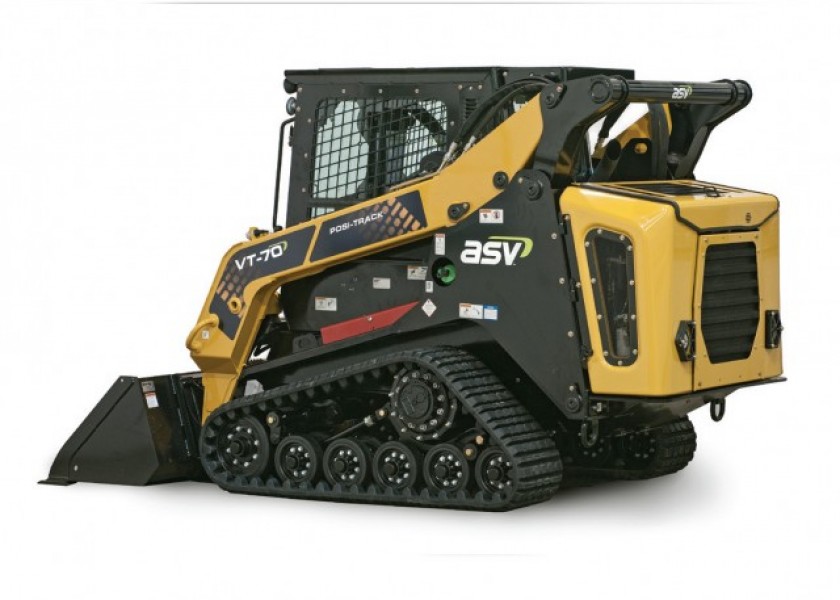

The VT-70 is ASV’s Compact Track Loader with special vertical lift loader linkage.
Your best option for any application where you need to keep the load level, or need extended lift or reach compared to a radial lift loader.
Note: also known as VT70 vertical skid steer / SSL / CTL / track loader / tracked bobcat / positrack.

OPERATING SPECS
Operating weight - 8,060 lbs / 3656 kg
Ground pressure @ operating weight - 4.6 psi / 31.7 kPa
Rated operating capacity (35% of tipping load) - 2,328 lbs / 1056 kg
Tipping load - 6,650 lbs / 3016 kg
Travel speeds - Low range - 0 to 7.7 mph / 12.4 kph; High range - 0 to 11 mph / 17.7 kph

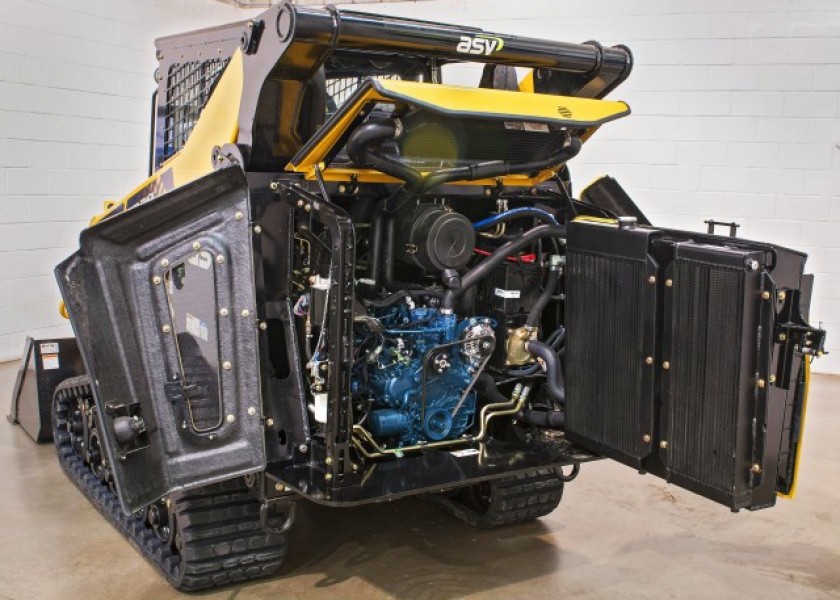

ENGINE
Type - Diesel, liquid cooled, 4-cylinder, turbocharged and inter-cooled
Model - Kubota V2403-CR-TIE4
Displacement - 148.5 cu. in. / 2.43 L
Gross power rating @ 2800 rpm - 65 hp / 48.6 kW
Torque, peak - 146 ft-lb / 198.5 Nm
Cooling system - Hydraulic temperature-controlled, variable speed fan and coolant/anti-freeze filled radiator
Intake air cleaner - Dual stage
Emission controls - Meets U.S. EPA Tier 4 final standards

AUX. HYDRAULICS
Pump capacity - Low - variable from 0-23 gpm / 87.1 lpm.; High - 28.4 gpm / 107.5 lpm.
System pressure max., - 3,300 psi / 22 753 kPa
Controls - variable flow via joystick rocker switch or continuous via console switch.
Couplers - Push-to-connect quick couplers mounted on loader arms. Pressure relief valve mounted to coupler block.
Hydraulic cooling system - High-efficiency side-by-side radiator and oil cooler. Cooling fan is hydraulically-driven.

ELECTRICAL
Nominal charge - 12 V
Battery - 800 CCA
Charging system - 120-amp alternator
Outlets - One 12 VDC port inside operator station
Wiring - Pre-wired for all factory-available accessories

UNDERCARRIAGE
Track type - General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads.
Track width - 15 in. / 381 mm
Length of track on ground - 59 in. / 1499 mm
Ground contact area, 18 in. track - 1,770 cu. in. / 1.14 cu. meter
Drive system - Two hydraulic direct drive sprockets controlled by a single joystick.
Track drive sprocket - Elevated with low-friction and replaceable sprocket rollers.
Undercarriage suspension - Two independent torsion axles suspend each track frame.
Roller wheels - 24 high-density polyurethane and rubber wheels per track. Wheel bearings protected by metal-faced seals.
Roller wheel diameters - Front and rear - 14 in. / 355.6 mm; Middle - 10 in. / 254 mm

OPERATOR STATION
Seat - Adjustable contour vinyl with built-in operator presence switch, lap bar and 2 in. / 51 mm wide seat belt.
Loader control - Right-hand electronic joystick controls loader lift/lower, tilt, plus intermittent control of aux.hydraulic.
Drive control - Left-hand electronic joystick controls machine speed and direction.
Engine speed control - Hand-operated throttle.
Indicators/gauges - Engine RPM, fuel level, coolant temperature, engine oil pressure, voltage, hydraulic oil temperature, engine hour meter.
ROPS - Meets SAE J1040 MAY94; ISO 3471.
FOPS - Meets SAE J1043 SEPT87, ISO 3449.
Illumination - Two adjustable forward-facing halogen lights; Two adjustable rear-facing halogen lights; and one interior light.
Convenience - One 12-VDC power port located inside operator station.
Audible alarms - Horn and backup alarm are standard.

REFILL CAP.
Fuel tank - 23.2 gal. / 87.8 L
Hydraulic tank - 3.3 gal. / 12.5 L
Engine coolant/antifreeze - 2.5 gal. / 9.5 L
Engine oil, including filter - 9 quarts / 8.5 L

OPTIONS
See your local ASV dealer for details

ATTACHMENTS
The following machine attachments are optionally available:

Auger drive and bits
Broom, rotary
Buckets (various)
Brush cutter, rotary
Dozer blade
Eliminator rake
Grapple bucket
Mulchers (Fecon Bull Hog – various sizes for skid steers)
Pallet forks
Power box rake
Stump grinder
Trencher

Call now to organise a booking 0488 00..... 1300 83.....
