3G GPS tracker

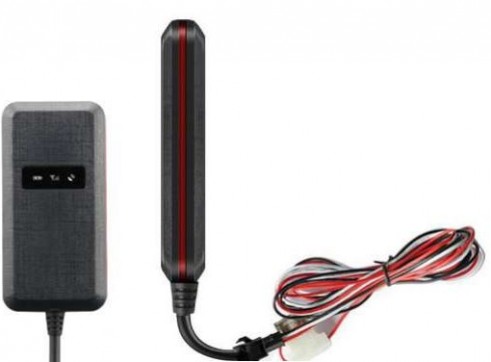

3G GPS tracker gives you the location of anything, at any time. Utilizing cutting-edge GPS technology, the OAGP3 can help you track anything, be it your car, children, or a prized possession, all in real time. The tracker’s manageable size allows you to install it easily, while being tough enough to withstand the bumps and movement of vehicle tracking.
Geo-fence
OAGP3 allows you to fence off certain areas of the map and be alerted when the tracker enters or leaves the restricted area.
SOS
When under emergency, press the SOS button, and the tracker will send SMS to all authorized phone number and monitoring platform.
Remote petrol/power cut-off
Cut off petrol or power by SMS command.
Vibration/Over speed alert
As soon as the device detects any vibration or over speed, it will send alerts to you.
ACC detection
Update the vehicle’s status quickly and accurately.
Hardware Specification
Communication System - WCDMA/GSM
Frequency - WCDMA 850/900/1900/2100MHz
Networks - GSM 850/900/1800/1900MHz WCDMA /EDGE/GPRS
Output Power - Class 3 (24dBm +1/-3dB) for UMTS bands
- Class 4 (33dBm ±2dB) for GSM 850/900MHz
- Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Receive Sensitivity - 110dBm/UMTS Bands
- 106dBm/GSM 900MHz，GSM 1800MHz
GPS
GPS Chip - MTK high sensitivity GPS chip
Frequency - L1,1575.42MHz C/A code
Channels - 66
Location Accuracy
Tracking Sensitivity - 165dBm
Acquisition Sensitivity - 148dBm
Location time Hot start：≤2sec(open sky)
Cold start：≤35sec(open sky)
