Two-deck, four bearing 8’ x 4’ (2.4m x 1.2m) screen
Remote control heavy duty tipping grid

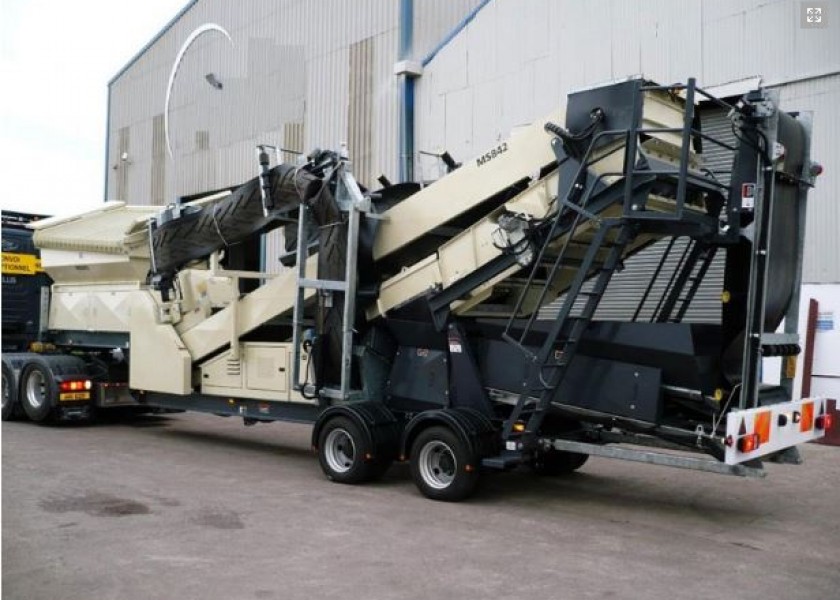

On site towbar with hydraulic jacking legs
Maintenance ladders and platform provides access to three sides of screen box
SPECIFICATIONS
Operational Length50’6” (15.4m)
Operational Height14’7” (4.4m)
Hopper Capacity6.9 cubic yds (5.3 cubic mtr.)
Loading Height10’8” (3.3m)
Loading Width12’6” (3.8m)
Hydraulic Tank96 gal (362 l)
Diesel Fuel Capacity40 gal (151 l)
Engine Make/ModelDeutz TD2011 I041
Engine Type4 cylinder air cooled diesel
Engine Horsepower49 HP (37KW)
Screen Box Size8’ x 4’ (2.4m x 1.2m)
Screen Box Type4 bearing
Towing ArrangementFifth Wheel
BrakesTractor Air
Transport Width8’2” (2.5m)
Travel Height13’0” (4.070m)
Transport Length40’3” (12.2m)
Tongue Weight8096lbs (3.68 Kg)
Total Weight30203 lbs (13.7 Kg)
