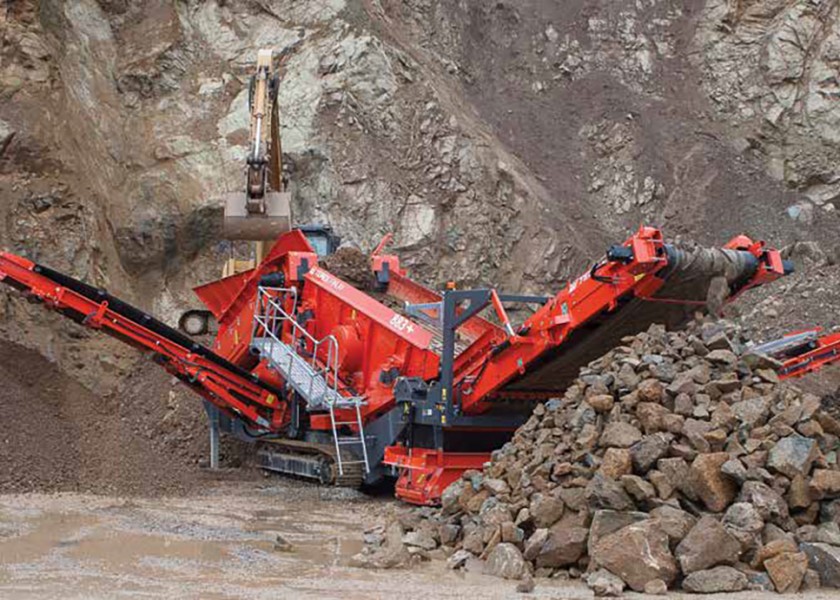

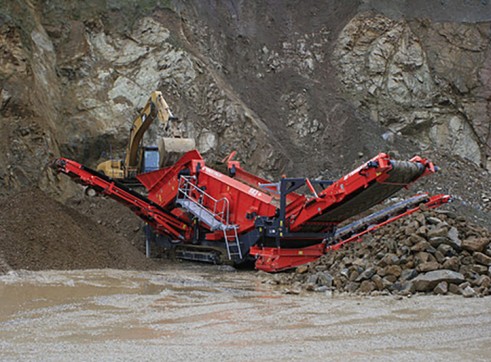

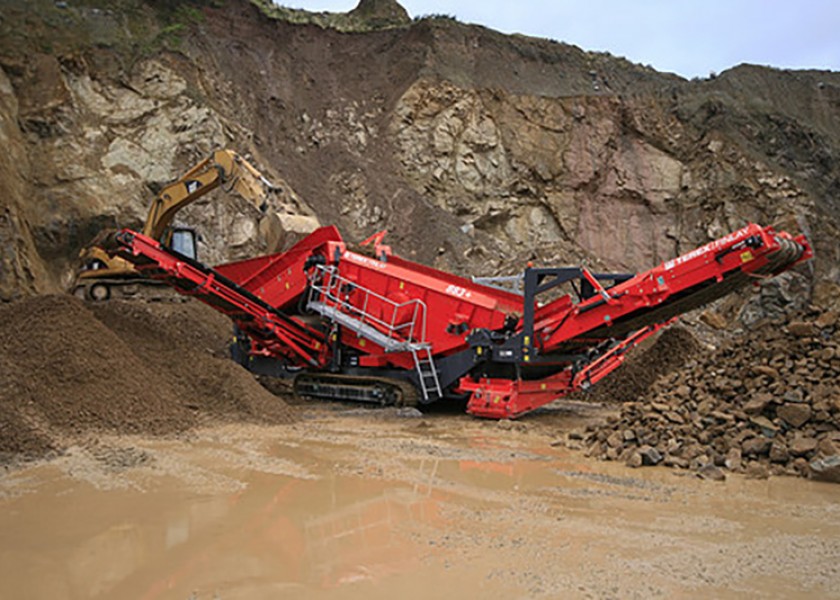

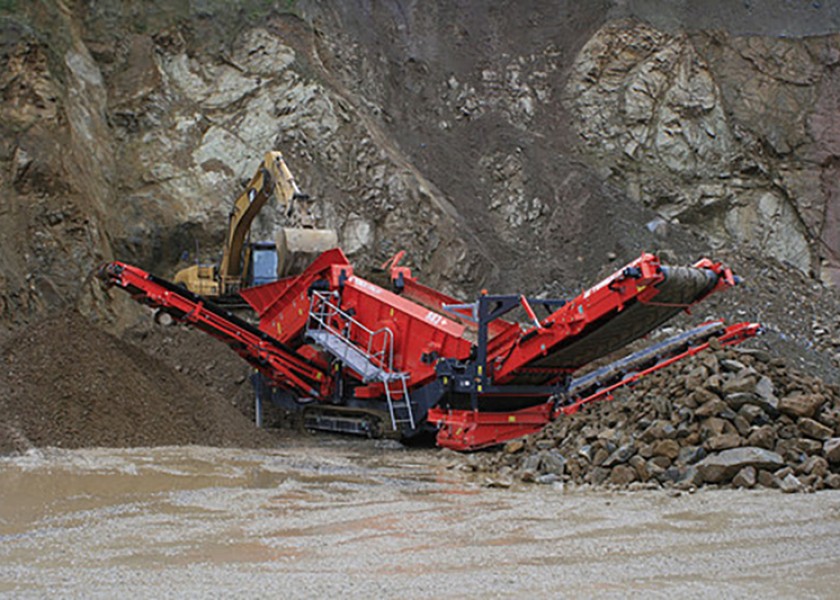

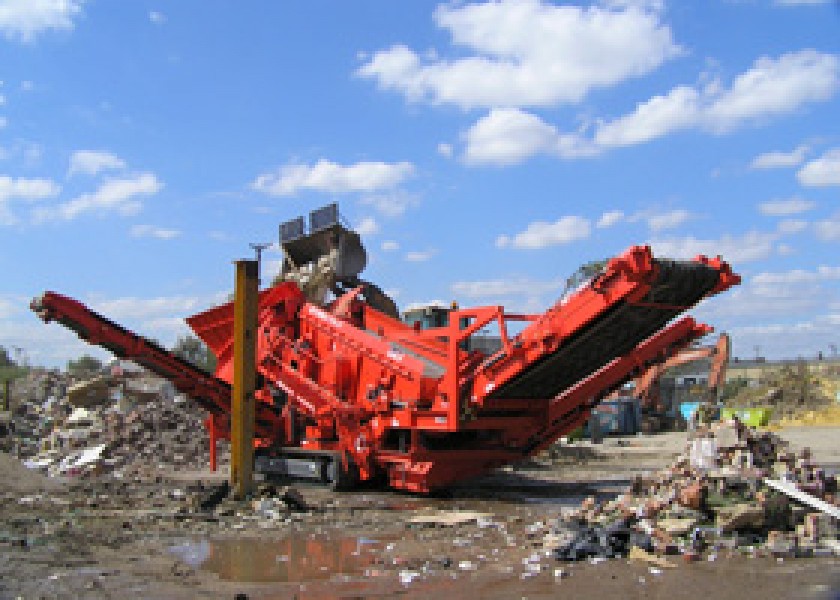

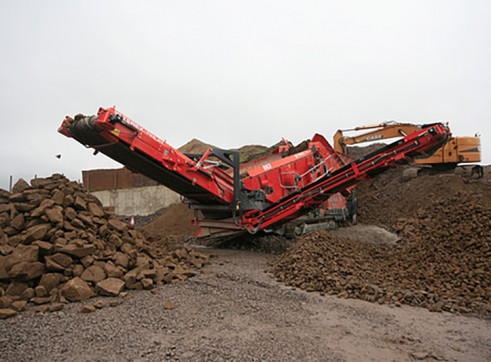

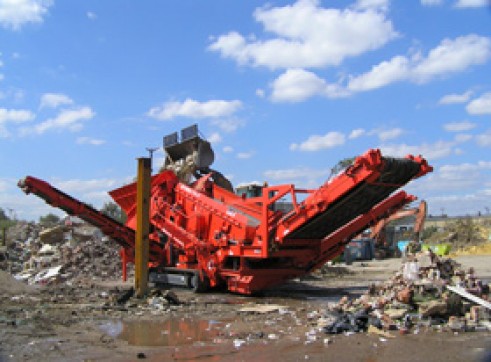

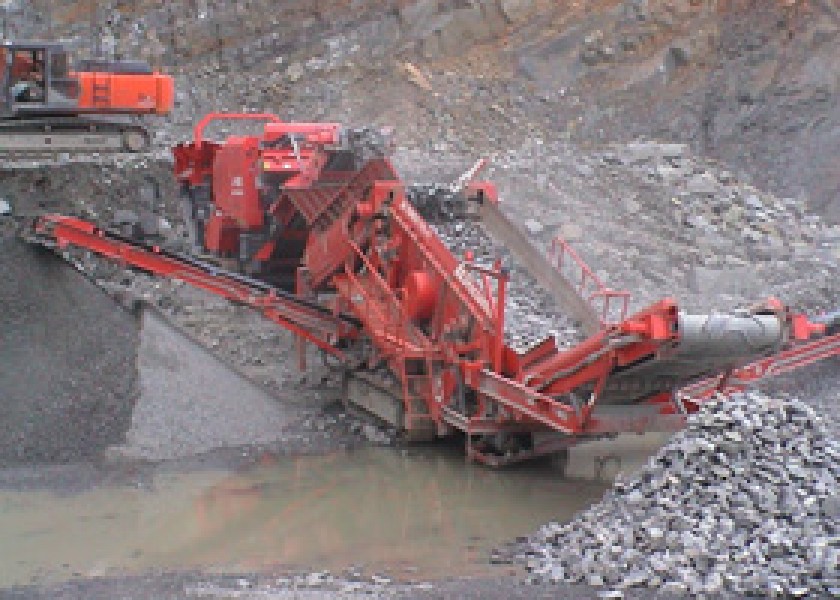

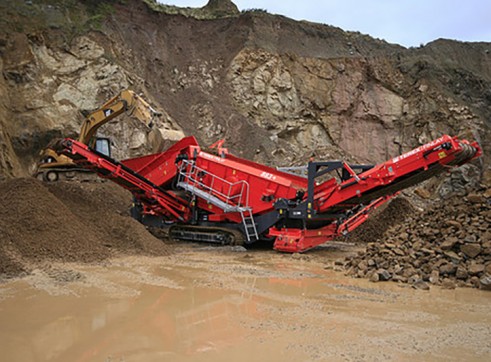

Overview The Finlay 883+ is designed to work as an aggregate screener after a primary crusher or on it’s own as a frontline screening machine. Applications include quarry waste, construction and demolition debris, topsoil and aggregates. Processing at a rate of up to 500 tonnes per hour, the key to the 883 is its adaptability, whatever the application or industry.
Features
Low level feed height
Hardox steel pan apron feeder
Heavy-duty screenbox with huge clearance between decks allowing a larger middle grade product to be processed.
Screen box features quick change mesh clamps
Adjustable screen angle between 13° and 19°
Options
Radio remote control movement.
Remote tipping grid

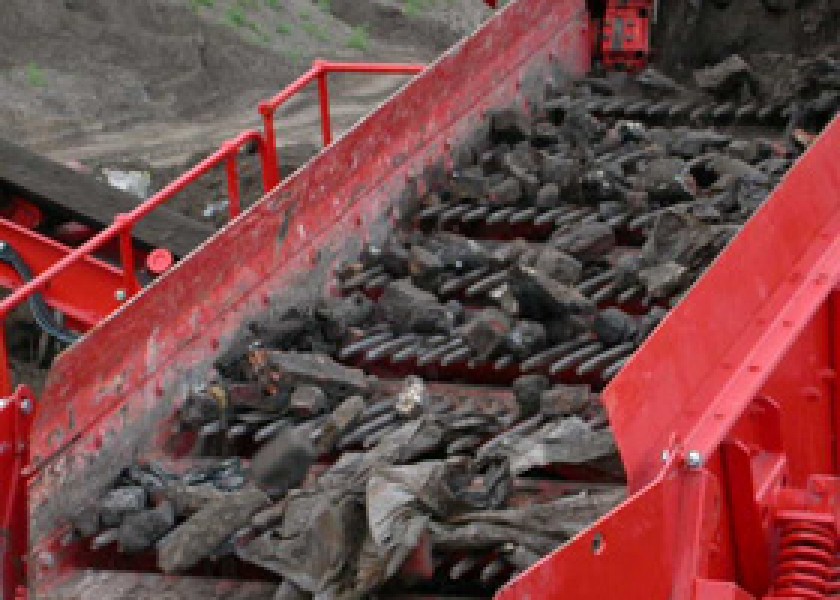

Heavy duty tines or punch plate in top deck of screen.
Cascade fingers in bottom deck.
Magnet on oversize conveyor.
Heavy Duty bofar bars in top deck
Extended fines and middle grade conveyors
Technical Specifications
883 Heavy Duty Screen
Hopper Capacity
7 cu. Meters (9.16 Cu.yds)
Screen Size
Top Deck – 4800mm X 1500mm (16′ X 5′) Bottom Deck – 3650mm X 1500mm (12′ X 5′)
