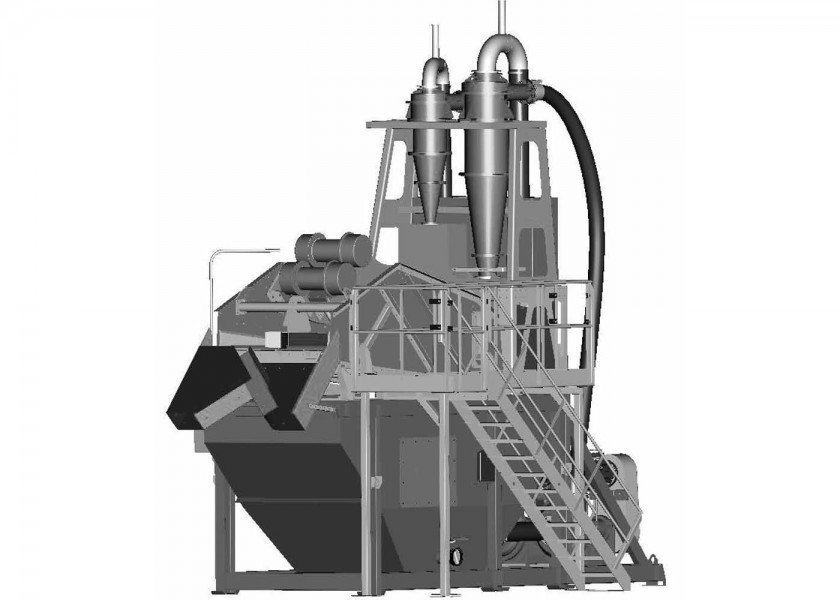

Static sand recovery unit
One Chassis
Two centrifugal slurry pumps
Two hydrocyclones
Collection tank
Split 12 x 5 dewatering screen
Produce two grades of sand
Works in conjunction with Terex Washing Systems Range
Features & Benefits
Underflow rubber lined slurry pumps.
Two rubber lined hydrocyclone’s which classifies at approximately 75 μm (200 mesh).
Self regulating cyclone tank complete with built in float system and Anti-turbulence sections.
High frequency split 3.6m x 1.5m (12 x 5) dewatering screen fitted with polyurethane modular mats
Maximum recovery of material above 75 μm (200 mesh).
Removes silt, slimes and clays below 75 μm (200 mesh)
.
Removes water following dewatering operation to 10–15% of residual water content.
Major reduction in saleable material discharging to the pond, thus reducing pond maintenance and saving money.
Heavy-duty robust construction ideal for rugged operating environment.
Low maintenance
All wear areas rubber lined
Walkway and access ladder
Quick assembly time
Breaks down into one 40’ (12m) container
Options
Boiler box for dry feed
Electrical control panel
Dewatering screen spraybars
