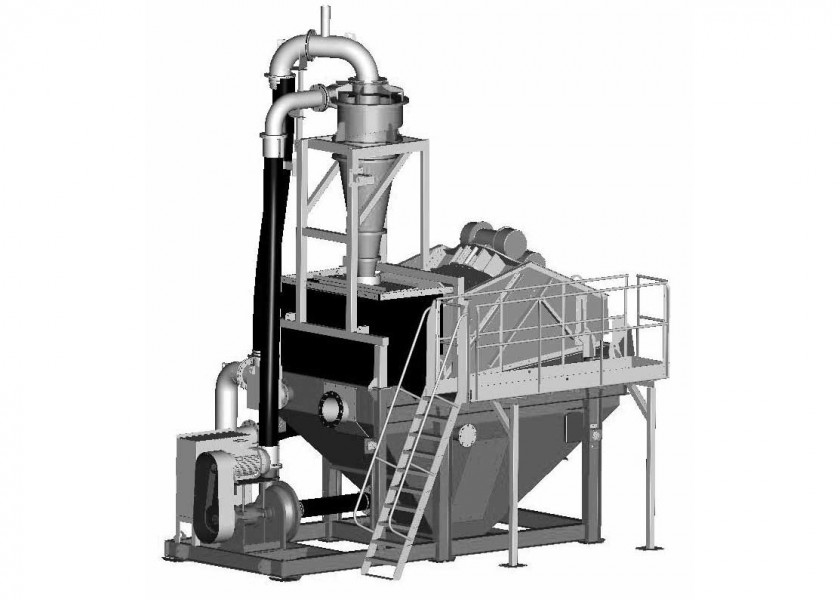

Static sand recovery unit on one chassis
Centrifugal slurry pump
Hydrocyclone
Collection tank
12 x 5 dewatering screen
Produces one grade of sand
Designed to work in conjunction with Terex Washing Systems range
Features & Benefits
Underflow rubber lined slurry pump
One rubber lined hydrocyclone which classifies at approximately 75 μm (200 mesh)
Self regulating cyclone tank complete with built in float system and anti-turbulence sections
High frequency12x5 dewatering screen fitted withpolyurethane modular mats
Maximum recovery of material above 75 μm (200 mesh)
Removes silt, slimes and clays below 75 μm (200 mesh)
Removes water following dewatering operation to 10–15% of residual water content
Major reduction in saleable material discharging to the pond,thus reducing pond maintenance and saving money
Heavy-duty robust construction ideal for rugged operatingenvironment
Low maintenance
All wear areas rubber lined
Walkway and access ladder
Quick assembly time
Breaks down into one 40’ (12m) container
Options
Boiler box for dry feed
Electrical control panel
Dewatering screen spraybars
