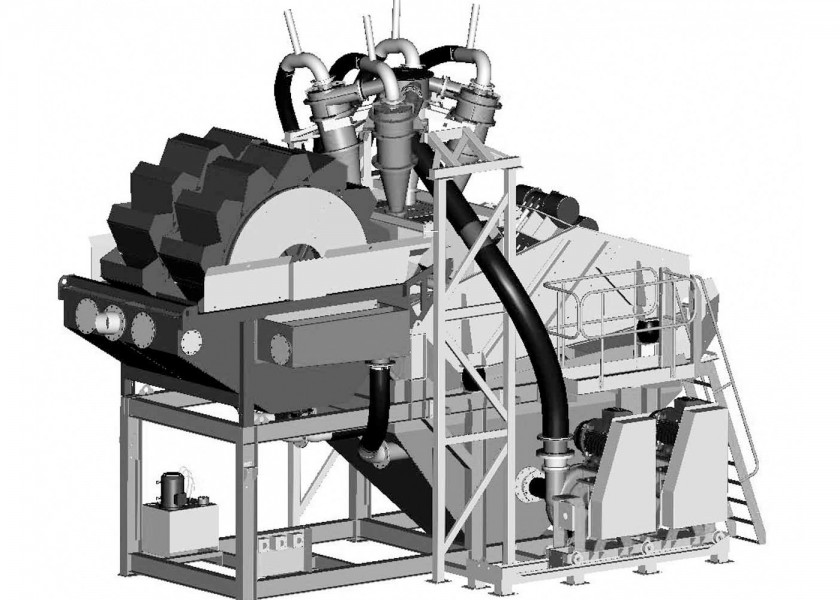

Static sand recovery unit on one chassis
2 centrifugal slurry pumps
4 hydrocyclones
Collection tank
14 x 5 dewatering screen
Produces one grade classifying at approximately 40 micron
Designed to work in conjunction with Terex Washing Systems range
Features & Benefits
Maximum recovery of material above 40 μm (400 mesh)
Removes silt, slimes and clays below 40 μm (400 mesh)
Removes water following dewatering operation to 10–15% of residual water content
Major reduction in fine material discharging to the water management system, thus reducing recovery cycle and saving money
Heavy-duty robust construction ideal for rugged operating environment
Low maintenance
All wear areas rubber lined
Walkway and access steps
Quick assembly time
Centrifugal slurry pump
High frequency 14×5 de-watering screen fitted with polyurethane modular mats
Four rubber lined G4 Hydrocyclones which classifies at approximately 40 μm (400 mesh)
Self-regulating cyclone tank complete with built in float system
Options
Bolier box for dry feed
Electrical control panel
Dewatering screen spraybars
