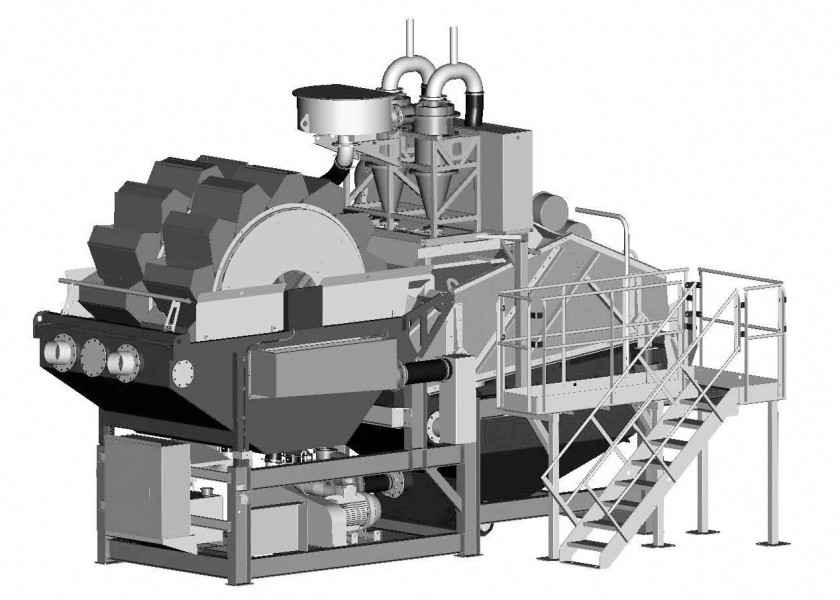

Static sand recovery unit on one chassis
Twin bucket wheel
Centrifugal pump
Twin hyrdocyclones
Collection tank
12 x 5 dewatering screen
Produce one or two grades of sand
Designed to work in conjunction with Terex Washing Systems range
Features & Benefits
Underflow rubber lined slurry pump
Double bucket wheel with variable speed control
Two rubber lined hydrocyclone which classifies at approximately 75 μm (200 mesh)
Self regulating cyclone tank complete with built in float system and anti-turbulence sections
High frequency12x5 dewatering screen fitted with polyurethane modular mats
Weir discharge system which reduces the volume of fines entering the cyclone collection tank
Collapsible bucket wheel tank for easy transport. (Mobile version)
Bucket wheel performs 80-90% of the work. This keeps the pump and cyclone size to a minimum
Reduced pump and cyclone wear
Reduced overall power requirements
Reduced running costs
Maximum recovery of material above 75 μm (200 mesh)
Removes silt, slimes and clays below 75 μm (200 mesh)
Removes water following dewatering operation to 10–15% of residual water content
Major reduction in saleable material discharging to the pond, thus reducing pond maintenance and saving money
Heavy-duty robust construction ideal for rugged operating environment
Low maintenance
All wear areas rubber lined
Quick assembly time
Options
Double grade product
Bolt on boiler box
Control panel
Mobile chassis with single braking axle and suspension
Dewatering screen spraybars
Lighting board on mobile chassis
Adjustable blending chute
