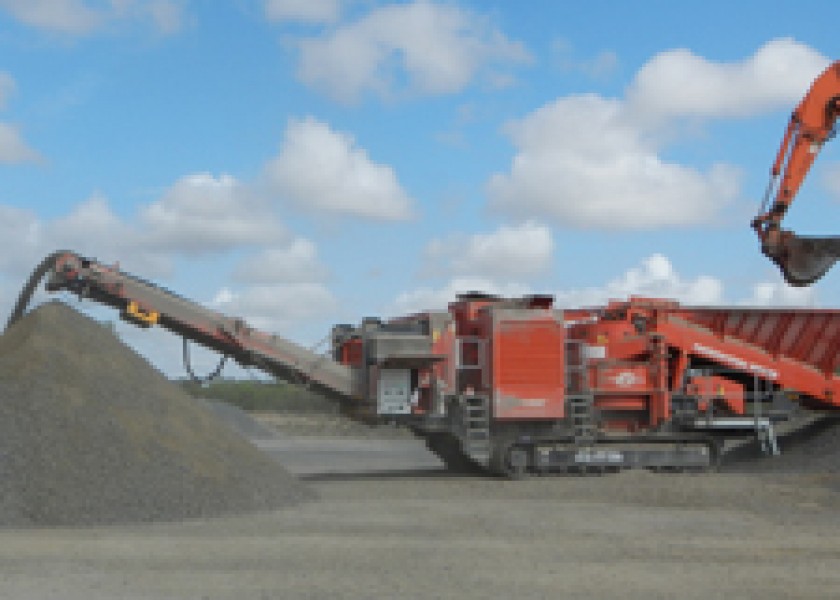

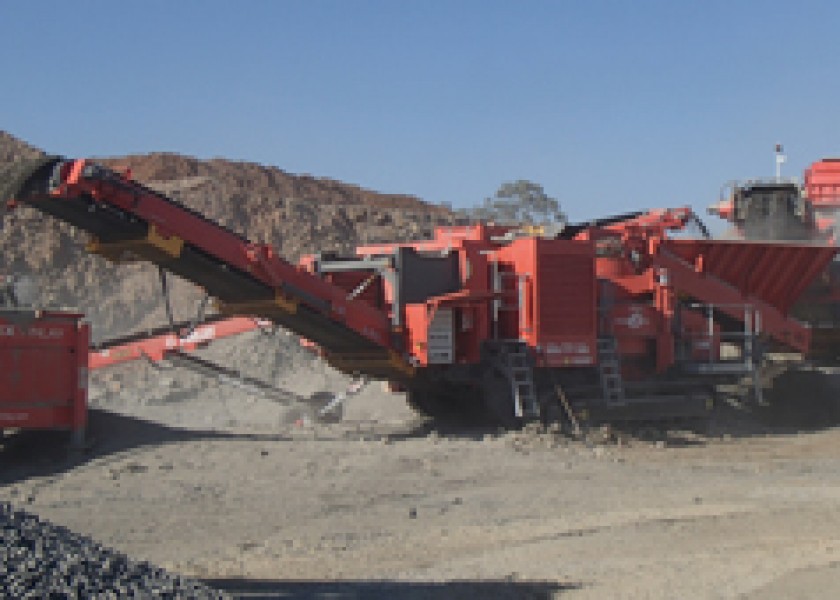

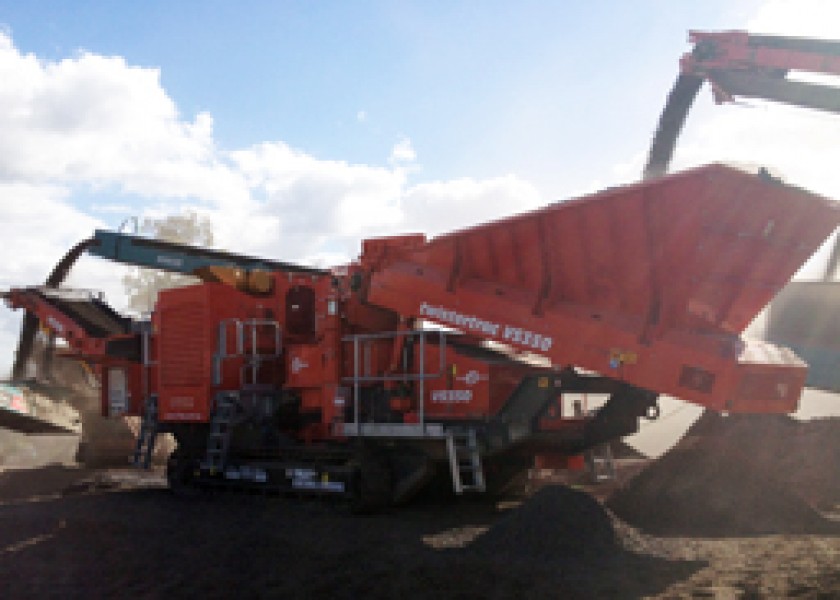

Overview Pilot Crushtec’s TwisterTrac VS350 is a fully-mobile, diesel hydraulic, remote-controlled, tracked Vertical Shaft Impact (VSI) crusher, used for manufacturing “in spec”, high-quality cubically shaped aggregates and sand. Ideally used as a third or fourth stage crusher, TwisterTrac VS350 is used all over the world in aggregate, industrial milling, recycling and mineral processing applications. This world leading product can be used on its own or easily integrated into mobile crushing plants. The tracked TwisterTrac VS350 was engineered from the ground up, making it fit for purpose unlike many so-called mobile crushers which are static machines adapted to accommodate the need for mobility. TwisterTrac VSI crushers use two variations of VSI crushing. The first is vertical shaft impact crushing where rock is fed onto a table type rotor which accelerates and then discharges the rock at high speed against steel anvils in the crushing chamber. The impact of the rock against the steel anvils induces fracture and breaks the rock. The second variation is called vertical shaft autogenous (VSA) crushing, where rock is fed into a multi-port rotor which accelerates and then discharges the rock at high speed against a rock filled crushing chamber. The impact of rock on rock induces fracture, breaks and shapes the rock. This unique crushing action provides low wear costs, superior products and high reduction ratios. The TwisterTrac has a variable speed belt feeder, a Twister VS350 vertical shaft impact crusher, hopper and belt feeder, a discharge conveyor and a diesel hydraulic power pack, all mounted on a heavy duty track undercarriage with dual speed configuration, and 25 degree gradability. The TwisterTrac is controlled via a relay logic control panel with push buttons, pilot lights and failsafe interlocks for ease of operation. The TwisterTrac VS350 has throughput capacities of up to 400tph with a touch button variable speed rotor which allows variation of the rotor between 1250rpm and 1650rpm providing the ability to adjust the crusher output or final product to suit ever changing job specifications. The machine has three simple operating modes – track, automatic and manual – with menu driven user interface
Features
Low capital investment and maintenance costs
Versatile – makes sand or aggregates
Ability to handle a large range of feed materials, feed gradings and feed sizes
High “through the rotor” tonnages
High reduction ratios from 5:1 to 30:1
Ability to produce high quality “cubical” shaped particles
SP09 six port modular rotor with variable rotor speeds
Replaceable rock box with replaceable build up plates
Vibration detection and emergency shut down
Heavy duty cartridge type bearing housing
Side mounted crusher drive for ease of maintenance
Load sensing belt feeder to control feed to crusher
CAT C15 403kW diesel engine with engine monitoring and protection system
Heavy duty undercarriage with integrated transmittal planetary drive
Easy to manipulate product characteristics by varying speed
‘Rock on Rock’ of ‘Rock on Steel’ options
Rapid replacement of rotor body and wear parts
Rapid, reliable and safe servicing
Specifications
VSI Crusher: SP09 six port modular rotor Engine Size: CAT C15 403kW Hopper Capacity: 6m3 Machine Weight: 34 000kg
