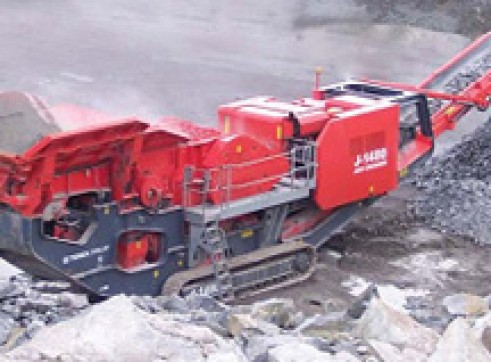

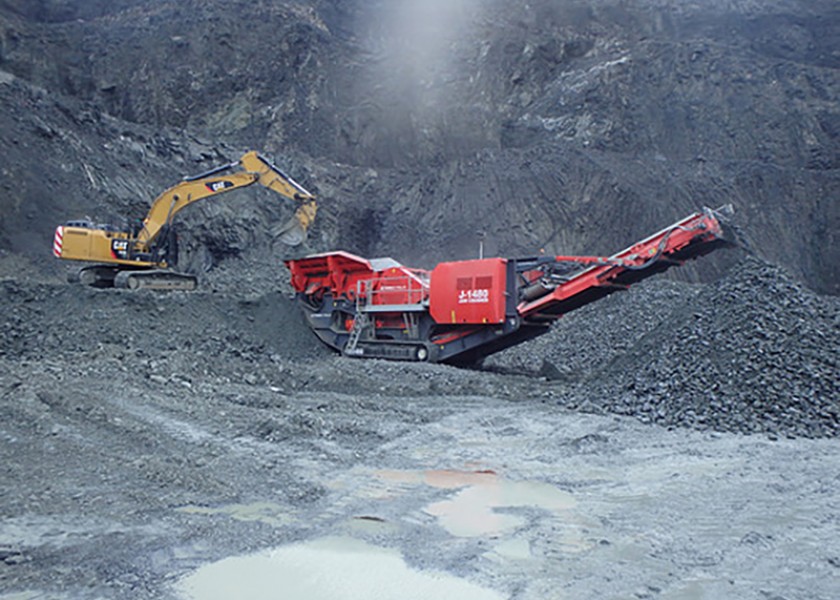

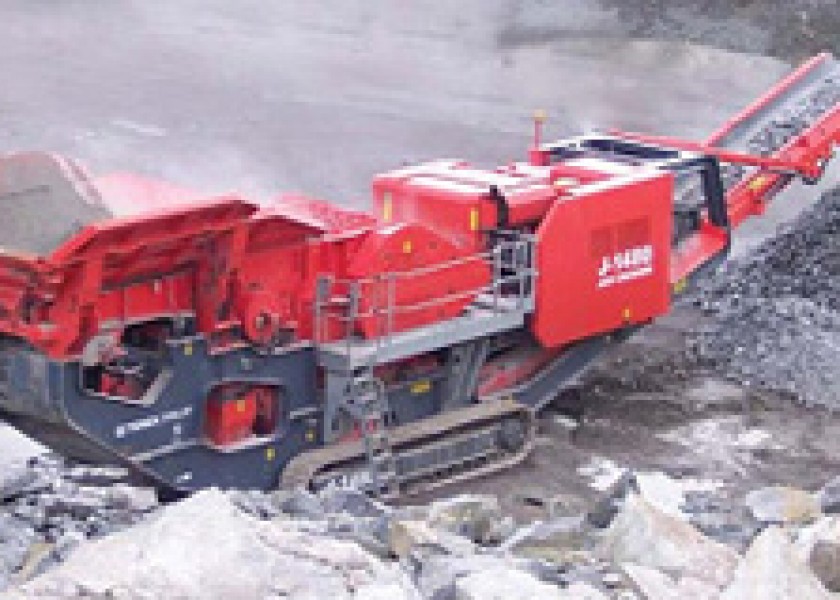

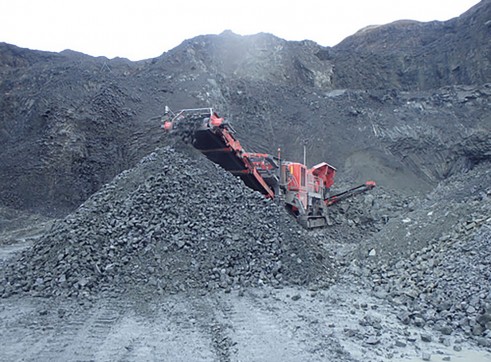

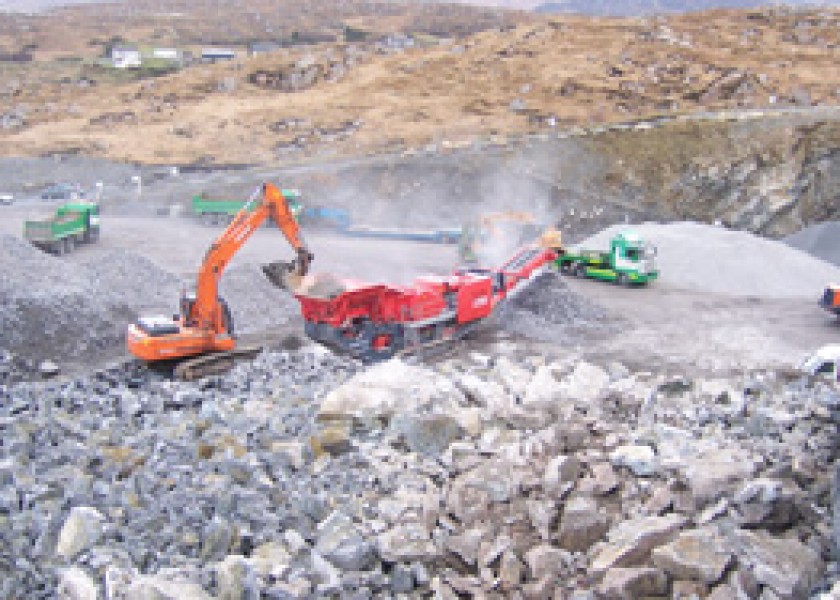

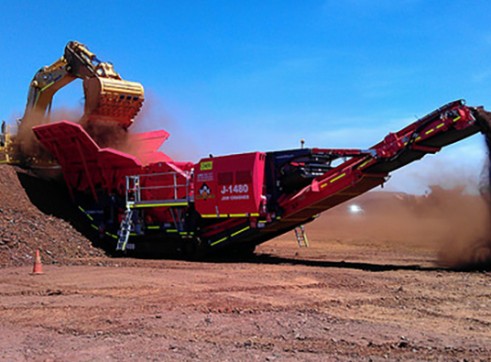

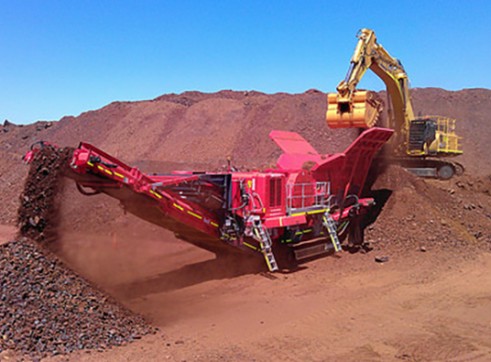

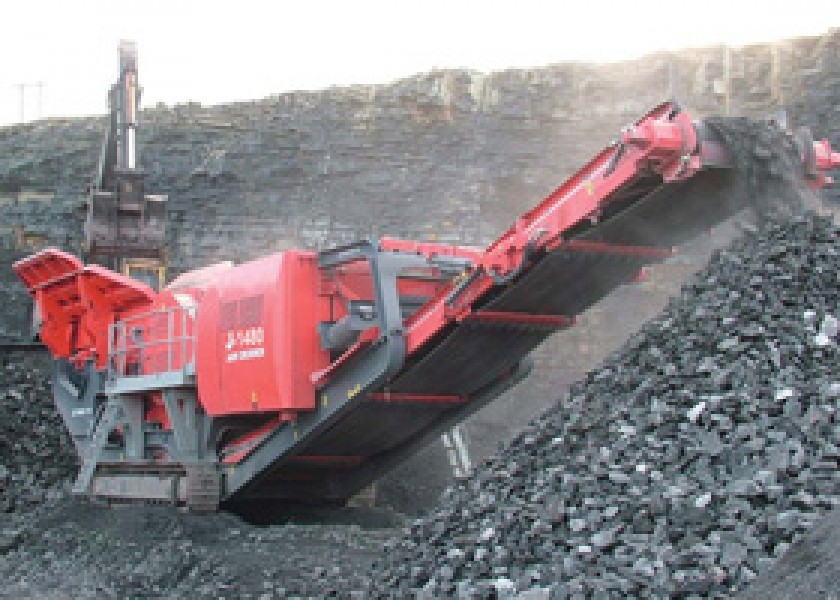

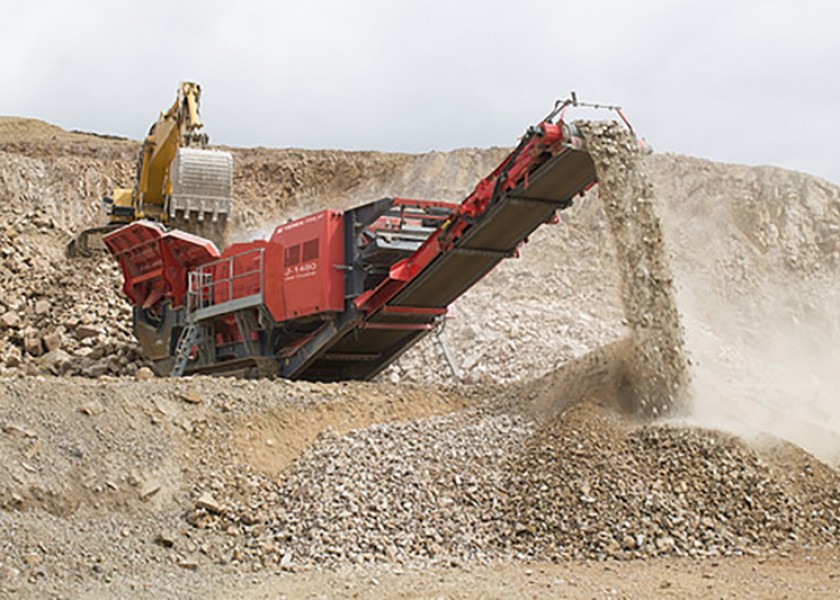

Overview The new FINLAY J-1480 single toggle Jaw Crusher is the latest development to complement FINLAY’S extensive range of mobile Crushing, Screening and Washing plants. The J-1480 is fitted with a Terex® Jaques 1370mm x 762mm (54” x 30”) single toggle jaw crusher chamber and a heavy-duty undercarriage for exceptional on site mobility. The hydrostatic drive, independent hydraulic pre-screen, heavy duty vibrating feeder, with automatic control to regulate the feed into the crusher ensures that the machine delivers maximum performance and efficiency, reducing down time whatever the application.Selectable discharge of fines materials to either the by-pass or main conveyor & reversible operation for clearing blockages are features of this machine.
Pre Screen System
The integrated pre-screen removes fines & sizes before entering the Jaw chamber, reducing packing & wear on the jaw liners. Operators can choose to collect product via the bypass conveyor or discharge the product via the main conveyor.
Options
Jaques 1370mm x 762mm (54” x 30”) single toggle jaw crusher
Hydrostatic drive & advanced electronic control system
Cat C13 328kW (440HP) water cooled diesel engine
Standard hopper – 10m3 (13yd3)
Hydraulically adjustable closed side setting
Reversible operation to clear blockages
Heavy duty vibrating grizzly feeder
Selectable discharge to by-pass conveyor main conveyor
Heavy duty vibrating feeder with automatic speed control
Integral vibrating pan and screen
Main conveyor: 1400mm belt with impact bars at feed point
Skirting a discharge conveyor
High spec scraper at head point
Two speed tracking with ‘Soft Start’
