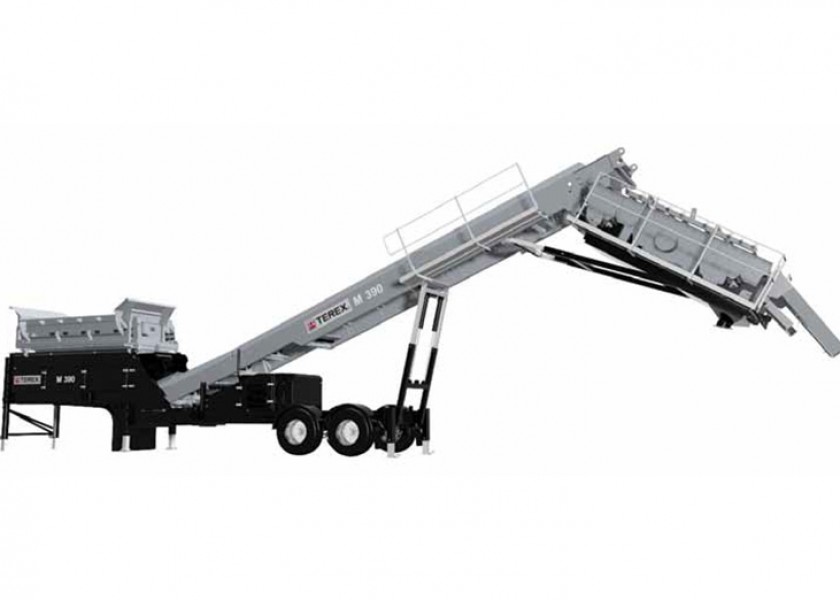

The M 390 is a high capacity mobile washing unit that has been engineered for quick installation and ease of relocation making it ideal for applications including sand, gravel, coal and crushed stone.
The M 390 includes a feed hopper complete with reject grid, feed conveyor, washing screen and fully enclosed power unit.
Features & Benefits
2 deck vibrating grid with abrasion resistant plate on wear surface
Vibrating grid discharge chute
Crusher feed chute
3 deck 3.7m x 1.5m (12’ x 5’) end tension middle and bottom deck
Sealed pipes complete with bonded rubber lining
Rubber lined discharge lip
Polyurethane modular decks 12’ x 5’ catchbox
2 deck vibrating grid with abrasion resistant plate on wear surface
Vibrating grid discharge chute
Crusher feed chute
3 deck 3.7m x 1.5m (12’ x 5’) end tension middle and bottom deck
Sealed pipes complete with bonded rubber lining
Rubber lined discharge lip
li> Polyurethane modular decks 12’ x 5’ catchbox
Options Include
2 deck vibrating grid with abrasion resistant plate onwear surface
Vibrating grid discharge chute
Crusher feed chute
3 deck 3.7m x 1.5m (12’ x 5’) end tension middle and bottom deck
Sealed pipes complete with bonded rubber lining
Rubber lined discharge lip
Polyurethane modular decks 12’ x 5’ catchbox
Electric hydraulic and All electric
Specifications
MODEL OPTION
2 & 3 DECK
Screensize
12’x5′ (3.7m x 1.5m) Top & Bottom Deck Screenbox
Net Engine Power
53kW @ 2300rpm (71hp)
Operating Weight
18,000kgs* (39,700 lbs*) * With tipping grid
