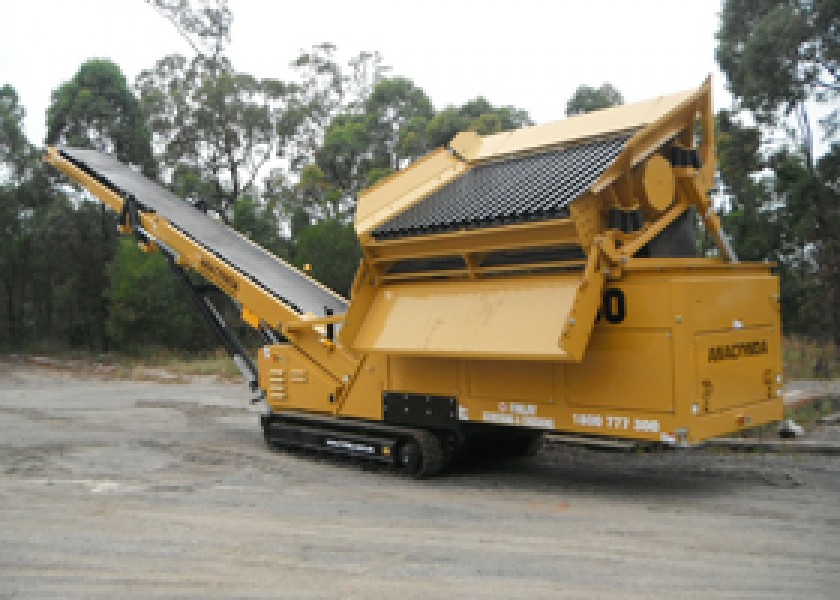

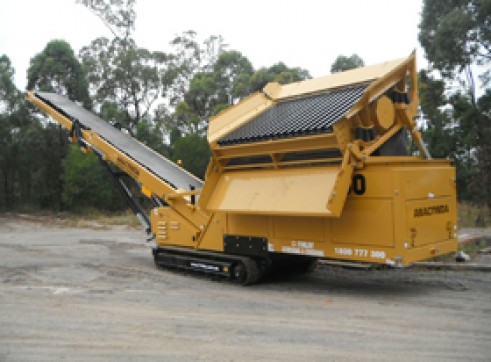

The FTR 150 feeder conveyor is the latest in a range of products designed for the material handling industry. The FTR 150 is robust and extremely cost effective.

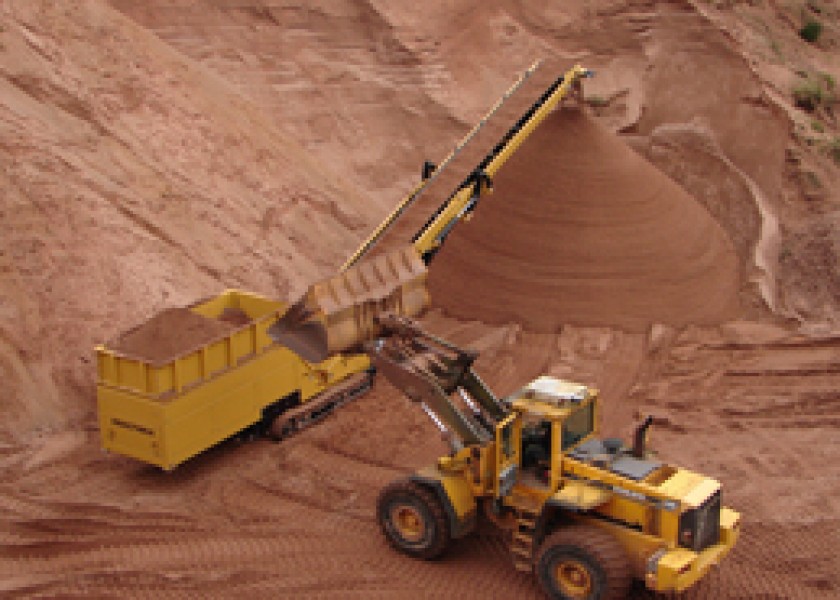

The FTR 150 has been designed for the sand & gravel, aggregates, coal and other related industries. The unit has a variable speed belt feeder and a 50ft (15m) long stockpiling conveyor which is ideal for truck/wagon/barge loading or to act as a surge feeder in a new/existing quarry plant.
Features And Benefits
Hopper capacity of 6m³ (option to increase this to 9m³)
Variable speed 4 ply 1050mm wide feeder belt
Deutz TD2011 air cooled power unit – 74hp (58kw)
Hydraulic jacking legs for ease of set up/movement
Hydraulic folding head section as standard
Easy access to engine compartment
Folds, tracks & transports without any breakdown/set-up
Set up time 20 minutes
Options
Feedboot extensions
Remote control tipping grid
Twin deck vibrating grid
Radio remote control
Twin drive motors on feeder and/or main conveyor
